DX52D Galvanized roofing corrugated panels
Corrugated plate, also known as profiled plate, is made of color coated steel plate, galvanized sheet and other metal plates by roller cold bending into various wave shapes, with light weight, earthquake resistance, fire prevention, rainproof, long life, maintenance-free and other characteristics, widely used
WhatsApp:+8615306358036
WhatsApp:+8613969530344
Email:admin@leyiyuanmetals.com
Contact Us
Product Description

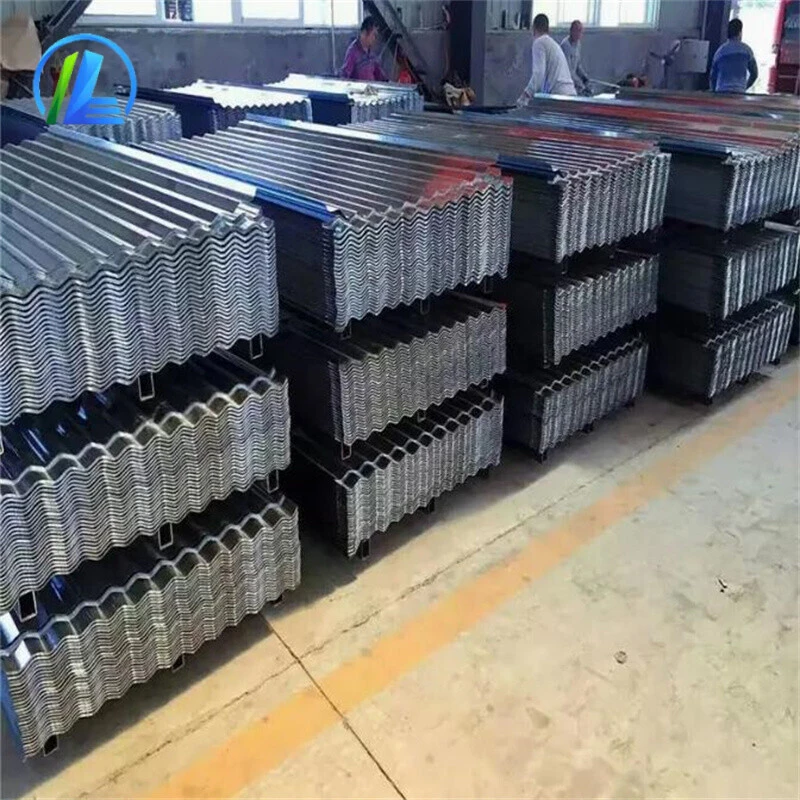

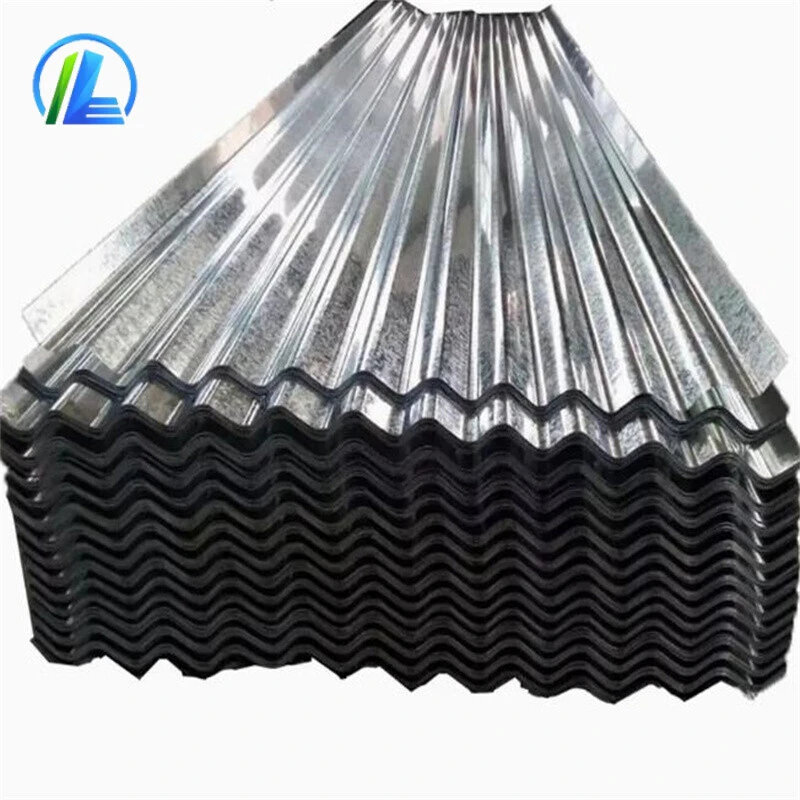

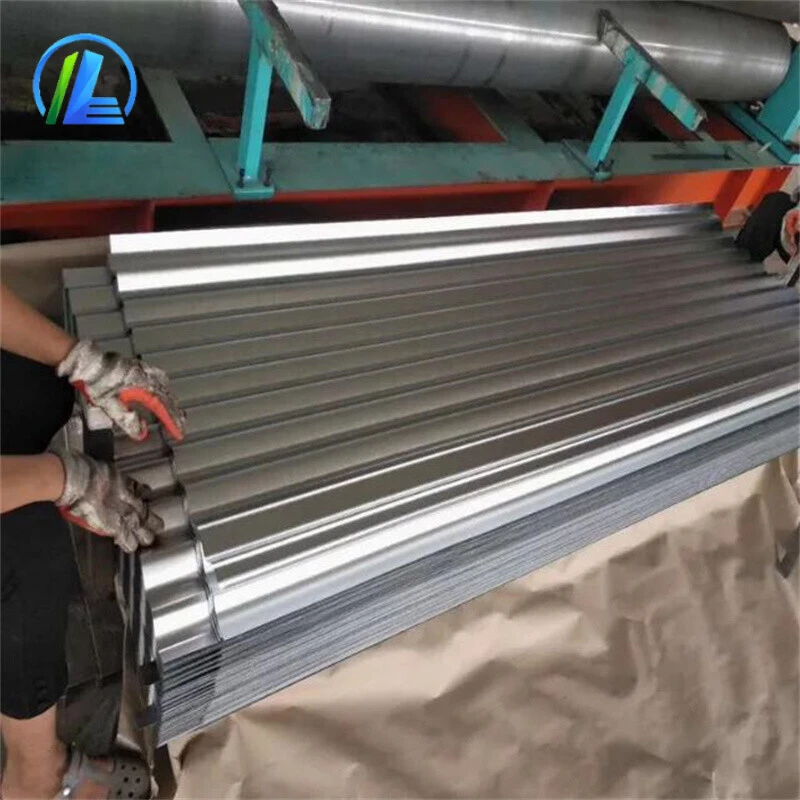

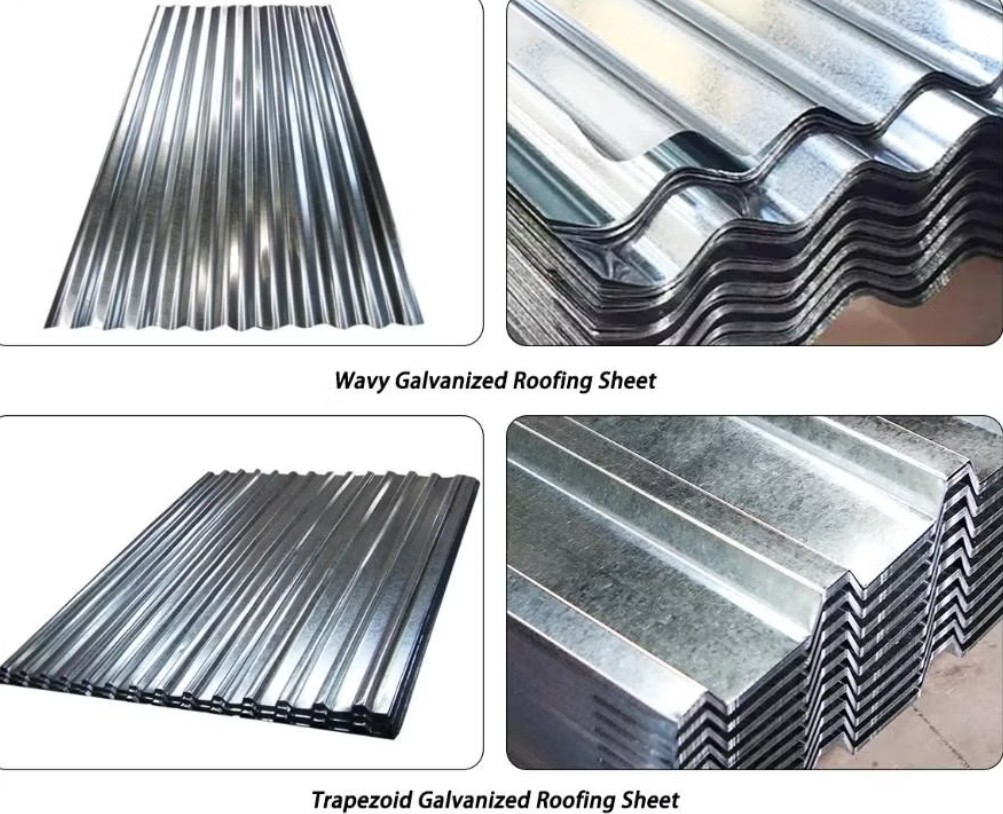

Product Show

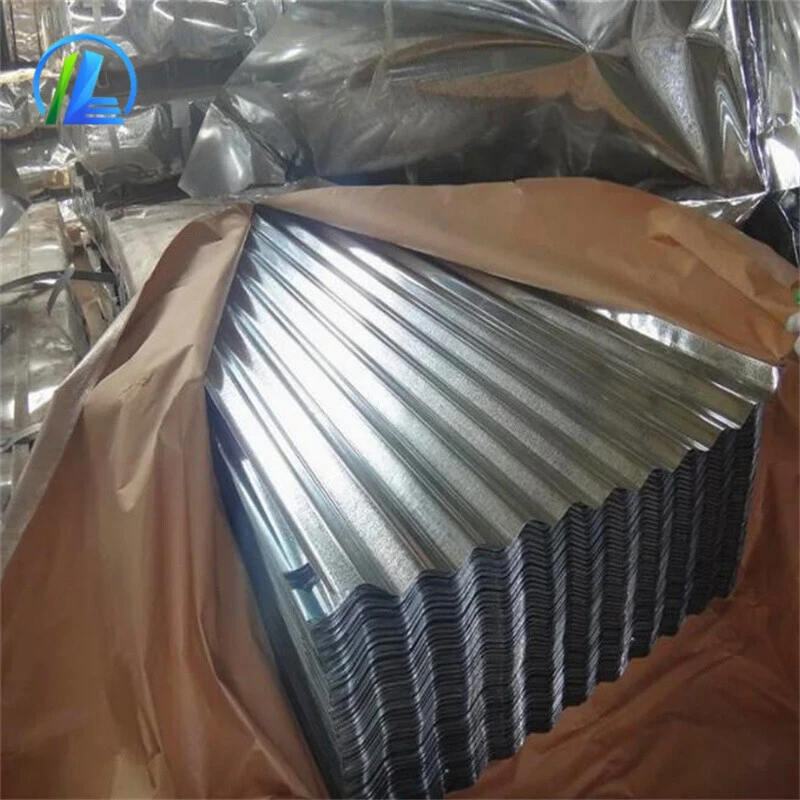

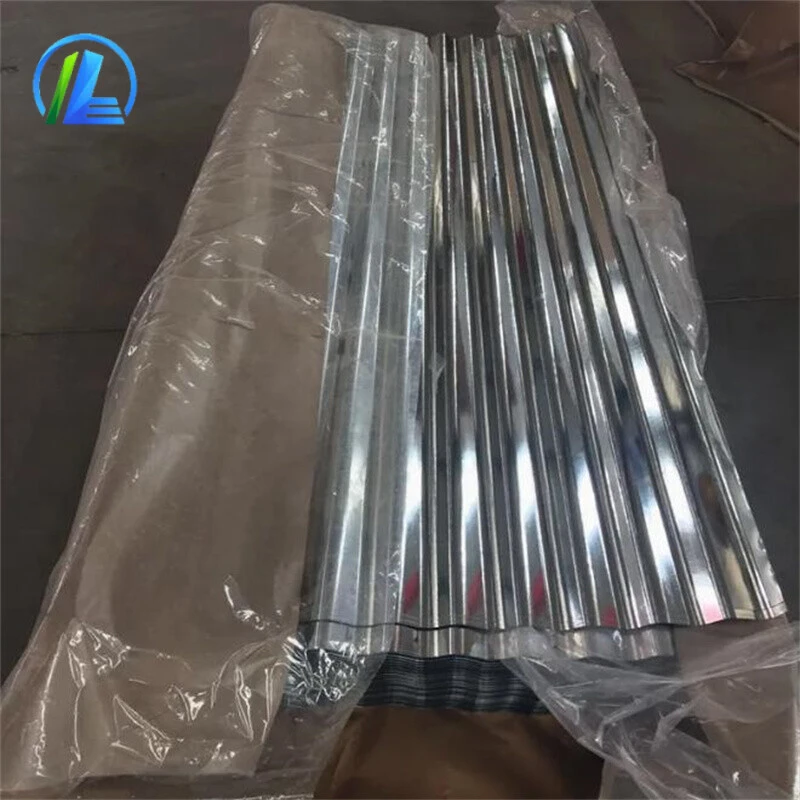

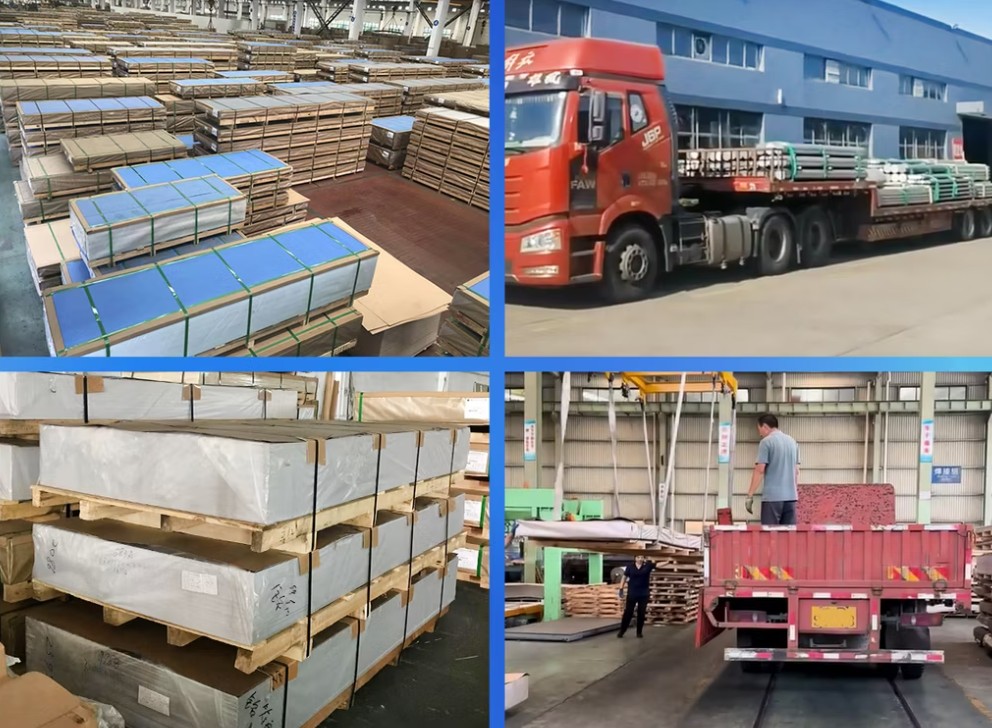

Packaging And Transport
Factory Show
FAQ

MaterialSGCC, SGCH, JIS G3302, DX51D, DX52D, DX53D
Thickness0.10 - 1mm or as customer's requirement
Width600 - 1250mm or as customer's requirement
Length2 - 5 meters
ToleranceThickness:+/- 0.02mm Width:+/-2mm
Zinc Coating30 - 275g/m2
Surface Treatmentunoil, dry, chromate passivated, non-chromate passivated
CertificationISO 9001-2008, SGS, CE, BV
TechniqueCold rolled->hot dipped galvanizing->Color Coated -> corrugated
Depth of corrugatedfrom 15mm to 18mm
Pitchfrom 75mm to 78mm
GlossThe gloss can changeable by Customers' Request.we can also do some High gloss.
StandardGB/T 12754-2006; ASTM A 755; EN 10169; JIS G 3312; AISI; BS; DIN
GradeCGCC/SGCC/SGCH/SPCC
Yield Strength550MPA/As required
Tensile strength600MPA/As required
HardnessFull hard/soft/As required
Applicationvarious roofs or walls referring to the large size factory buildings, storages, exhibition halls, gymnasiums etc.




  • bfc5ebc48d0746498f374402a00f6b1c.jpeg
  • 7fe62e7e9c784905a5b8db176c578e8a_2.jpg
  • 33b50126-fa9e-4085-a293-b5373119517e.jpg
  • 72001e48-1fcd-49a1-b8f0-8c9ef9ed7609.jpg
  • 1129941567_16983289228161n.png
  • pngtree-an-image-of-two-piles-of-shiny-steel-pipes-picture-image_2739457.jpg
  • steel2.jpg
  • mayducphoi6donglientucklhhoaphatdungquat.jpg
  • unnamed (2).jpg
  • unnamed (1).jpg
Q1: How long does your delivery time take?
A: Generally, our delivery time is within 7-45 days, if there is a great demand or special circumstances, it may be delayed.
Q2: What certifications do your products have?
A: We have ISO 9001, SGS, EWC and other certifications.
Q3: What are the shipping ports?
A: You can choose other ports according to your needs.
Q4: Can you send samples?
A: Of course, we can send samples to all over the world, our samples are free, but customers need to bear the courier cost.
Q5: What product information do I need to provide?
A: You need to provide grade, width, thickness and the ton you need to buy.
Q6:What's your advantage?
A: Honest business with competitive price and professional service on export process.
